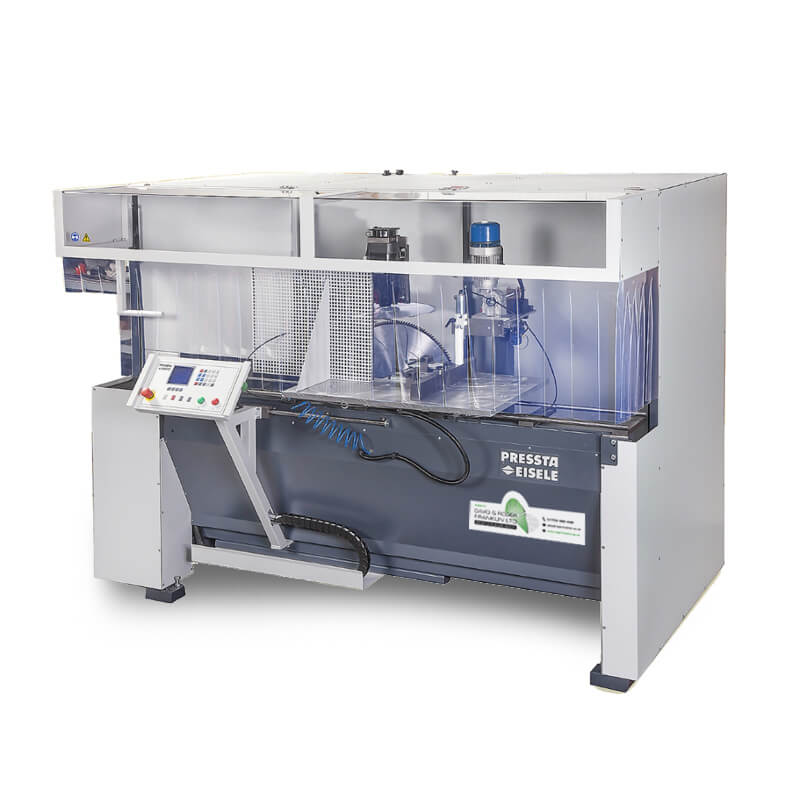

AUTOMATIC 4 AXIS END NOTCHING SAW Variable notching possibilities for mullion and transom combinations, such as curtain walls, sky lights and special designs. Notch variation: rectangle, one sided angular, two sided angular, three sided angular. Notch dimensions: 210mm horizontal, and 262mm vertical at (90°) Profile dimensions: max height 280mm, max width 320mm 4 axis adjustment of the saw blades via electronic control panel Notch height Swivel vertical blade Swivel vertical and horizontal blade together – material depth stop Power adjusted notch height – positioning via control panel 0-260mm Power adjusted pivoting range vertical saw blade 90°-60° 30° (front/back) Power adjusted pivoting range horizontal vertical saw blade 90° 45°-45° Material fence on the table pivoting range manually swivelled left / right 30°-90°-45°, positioning by scale Depth stop power adjusted via control panel Precise and safe notching due to the work piece being clamped on the table during the cutting process Hydro pneumatic feed, infinitely adjustable 1-4m/min Lubrication with 1 nozzle to each saw blade Pneumatic profile clamps, vertical and horizontal 2 handed safety control Sawblades 1Nr 550mm and 1Nr 650mm diameter Weight 1400kg Dimensions 2800 x 1800 x 1800 mm (L x W x H) Brochures and Literature: Download Literature | Enquire about this product
