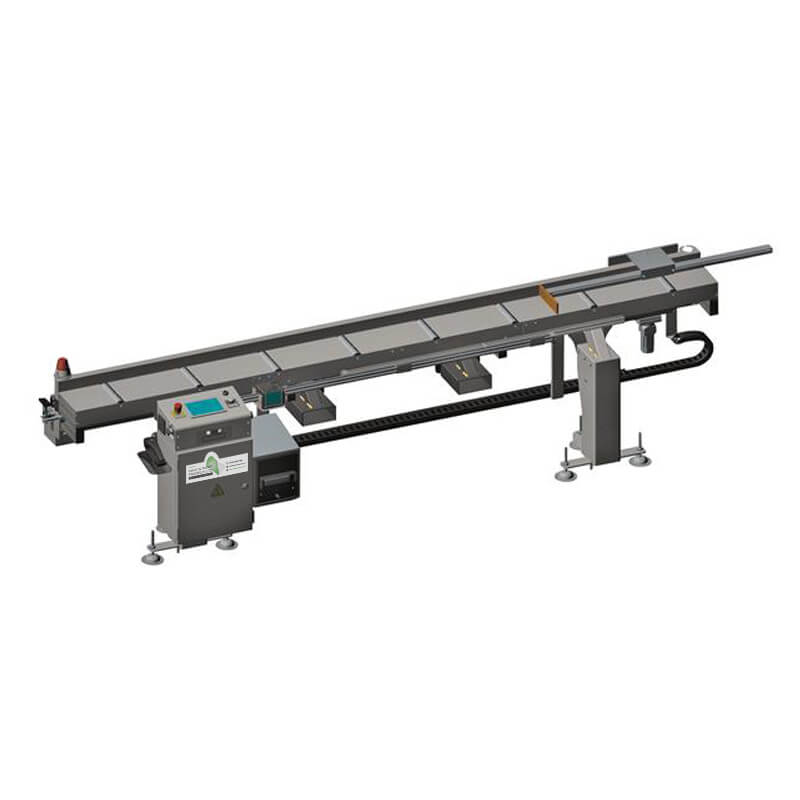

Comall Quota GB ALU
$40.85
$75.98
Electronic measuring roller table for aluminium glazing bead with optional Bluetooth data reception. Technical specifications: Work table with rollers Length stop controlled by brushless motor Rack-and-pinion transmission system Fixed stop Horizontal roller table height above ground from 850 to 1010 mm Width of bar resting surface: 200 mm Positioning precision ± 0,2 mm Plastic rollers Cardboard packaging on pallet Runs in ”semiautomatic”, ”manual list” and ”lists from PC” transferred using USB memory stick Profile and type archive Paint thickness and blade thickness correction Control equipment: POWER-Z Electronic equipment description: Industrial type numerical control 7” colour touchscreen display Ethernet connection for the transfer via FTP of lists 2.0 USB port RS232 serial port (rear) Ethernet port (rear) Optionals: Electronic gauge Gauge support with contact connector recharge (to be ordered together with the roller conveyor) (Available for QUOTA MR/GB-ALU/GB-PVC only) Pressure switch kit to signal a cut piece (to be ordered together with the roller conveyor) Pressure switch kit to signal a stuck piece (to be ordered together with the roller conveyor) Paper roll for printer; min. n. 10 pcs (58×35 mm) Paper roll for printer; min. n. 10 pcs (100×36 mm) Electronic gauge Bluetooth receiver Data conversion driver. For supported formats, see list in attachment Label printer RJ45 Ethernet port Wireless optical barcode reader and relevant software (can only be used with Fom/Comall protocol barcodes) Null modem adapter M-M Programming DELTA cable drive Brochures and Literature: Download Literature | Enquire about this product
Comall
