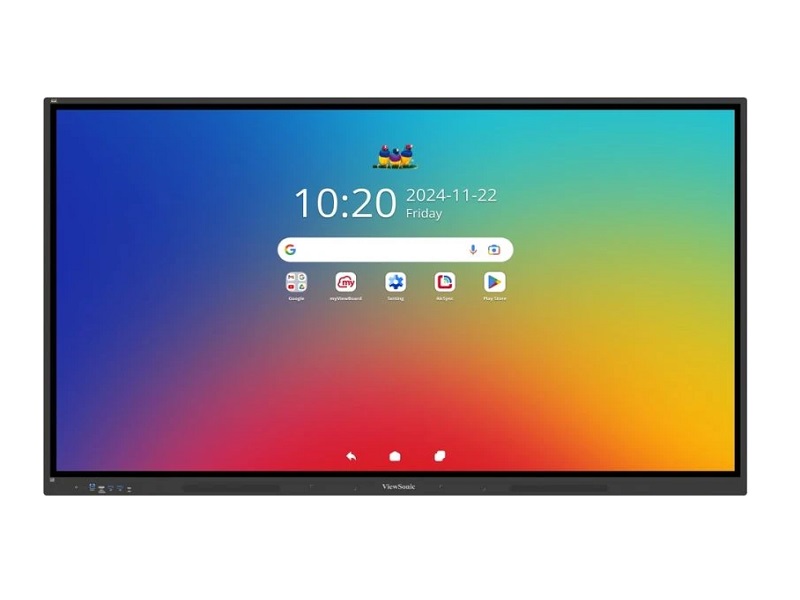

OVERVIEW Start your EdTech journey right with the ViewBoard IFP34 Series, designed with enhanced writing functionality and optimized power efficiency to meet the needs of K12 and higher education. Powered by EDLA-certified Android 14, it offers a smooth, secure user experience with full access to the Play Store for endless educational and productivity apps. Integrated ViewSonic Education Software takes it even further, adding powerful tools for digital whiteboarding, wireless casting, and centralized device management. Together, these features empower educators to create engaging, interactive learning environments, all while simplifying classroom workflows. Display Panel Size: 86″ Panel Type: TFT LCD Module with DLED Backlight. Display Area (mm): 1895.04(H) x 1065.96V) Aspect Ratio: 16:9 Resolution: UHD 3840×2160(Pixels) Colors: 1.07B colors Brightness: 350 nits Contrast Ratio: 5000:1 (max. with DCR enabled) Response Time: 8ms Viewing Angles: H=178, V=178 Backlight Life: 50,000 Hours (8 hours of use per day) Surface Treatment: Hardness: 7H Anti-glare coating Orientation: Landscape Platform Processor: Quad-core RAM: 8GB DDR4 Storage: 128 GB Touch Type/ Tech: Ultra Fine Touch Technology Touch Resolution: 32767 x 32767 Touch Point: 40 points touch Palm Rejection: Yes INPUT HDMI: x3 (Front x1: HDMI2.0/HDCP 2.2/CEC; Rear x 2:HDMI2.0/HDCP 2.2/CEC/ARC for HDMI 2) RGB / VGA: x1 DisplayPort: x1 Audio: x1 RS232: x1 SD/SDHC: x1 OPS: x1 (Optional Intel Standard OPS) WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) OUTPUT HDMI: HDMI 2.0 x1 Audio: x1 SPDIF: x1 LAN RJ45: x2 USB Type A: USB3.2 Gen 1 x 4 (Front x 2; Rear x 2 ) USB 2.0×1 (Rear) Type B: USB 3.0 x2 (Rear x1 Front x1) Type C: Front*1 [PD65W (15W with OPS, 65W without OPS) DP1.2 Data 10M/100M sharing)] Rear *1 (PD15W Data) SPEAKERS 16W x 2 Top Camera Plate Yes Embedded OS Android 14 EDLA Bundled Software Basic Annotation Software: myViewBoard Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC) Wireless Presentation: AirSync Device Management: Manager ViewSonic Launcher: Yes Special Features All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort`99 USB” to all channels. Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC Light Sensor: Yes Power Voltage: 100-240V AC Consumption: On:114.15W ; Off: ≤ 0.5W ERGONOMICS Wall Mount (VESA`ae ): 800*600 OPERATING CONDITIONS Temperature (`ba C): 0`b0C to 40`b0C Humidity: 20% ~ 80% RH non-condensing DIMENSIONS (W x H x D) Physical (inch / mm): 77.2 x 45.8 x 3.45 (in.) / 1961.8 x 1163.9 x 87.7 (mm) Packaging (inch / mm): 82.48 x 49.8 x 7.28(in.)/ 2095 x 1265 x 185 (mm) WEIGHT Net (lb / kg): 137.35 lb / 62.3 kg Gross (lb / kg): 170.42 lb / 77.3kg REGULATIONS FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS Energy Star version 8.0 EEI rating F PACKAGE CONTENTS 1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2 2, wall mount 4) 10. HDMI cable 3m Compatible Slot-in PC VPC3X, VPCF5-2A, VPCF5, VPC2X, VPC-A31-O1 Note Product specifications are subject to change without notice.
