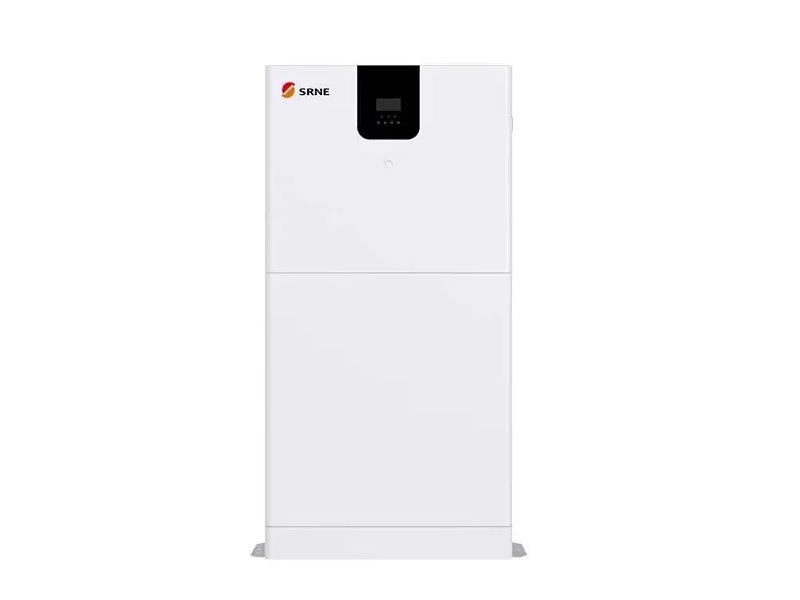

SRNE All In 1 System 3.5Kw24V80A Inverte

Battery Technical Specification Battery Model: SR-EOV24-5.0A-E1 Number Of Batteries: 1 Battery Energy: 5.12KWH Battery Capacity: 200AH Weight: 100Kg Dimension: 1190mmL x 600mmD x 184mmH Battery Type: LiFePO4 Battery Rated Voltage: 25.6V Battery Working Voltage Range: 22.4VDC – 28.8VDC Maximum Charging Current: 150A Maximum Discharging Current: 150A DOD: 80% Designed Life Span: 5000 Cycles Inverter Technical Specification Inverter Model: SR-EOV24-3.5S-C1 PV Charge Solar Charge Type: MPPT Maximum Input Power: 4000W PV Charging Current Range: 0A-80A PV Operating Voltage Range: 120VDC-500VDC MPPT Voltage Range: 120VDC-450VDC AC Charge Maximum Charge Power: 2240W AC Charging Current Range: 0A-80A Rated Input Voltage: 220VAC-230VAC Input Voltage Range: 90VAC-280VAC AC Output Rated Output Power: 3500W Maximum Output Current: 30A Frequency: 50Hz Overload Current: 35A Battery Inverter Output Rated Output Power: 3500W Maximum Peak Power: 6000VA Power Factor: 1 Pated Output Voltage: 230VAC Frequency: 50Hz Auto Switch Period: <15ms Environment Limit Communication: RS485 / CAN / WIFI Charging Temperature Range: 0 C to 45 C Discharging Temperature Range: -10 C to 45 C Operation Humidity: 5% to 85% Cooling Mode: Force-Air-Cooling @ 60bB Ingress Protection: IP20 Operation Environment: Indoor Installation Method: Vertical Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
