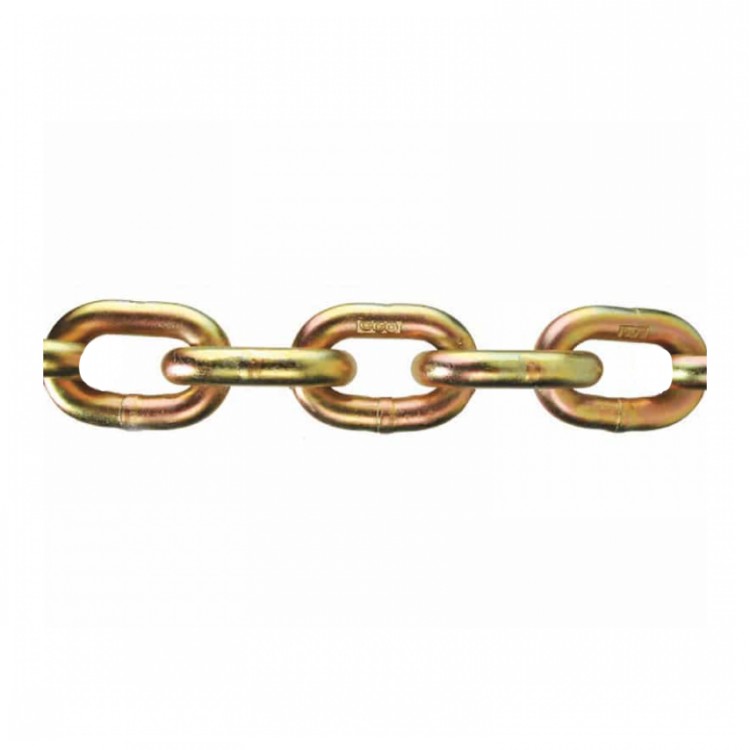

GRADE 70 TRANSPORT CHAIN AS4344 Chain Size Inside Length Width Min. Breaking Strength Lashing Capacity Weight D L B b max. min. max. min. mm mm mm mm mm kN kg kg/m 6 18.9 17.33 22.05 7.88 44.1 2,300 0.81 7 21.3 19.53 24.85 8.88 55.9 2,900 1.09 7.3 24 22 26.6 10 58.9 3,000 1.16 8 24 22 28 10 73.6 3,800 1.42 10 30 27.5 35 12.5 118 6,000 2.22 13 39 35.75 45.5 16.25 176 9,000 3.75 GRADE 70 TRANSPORT CHAIN Meets the latest revision of Australian Standard 4344 Designed for use in the transport industry for cargo restraint Quenched and tempered, proof tested Design factor 4 : 1 Yellow chromated zinc plated finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:EN818-2 GRADE 80 SHORT LINK CHAIN,GRADE 80 ALLOY CHAIN NACM2010
