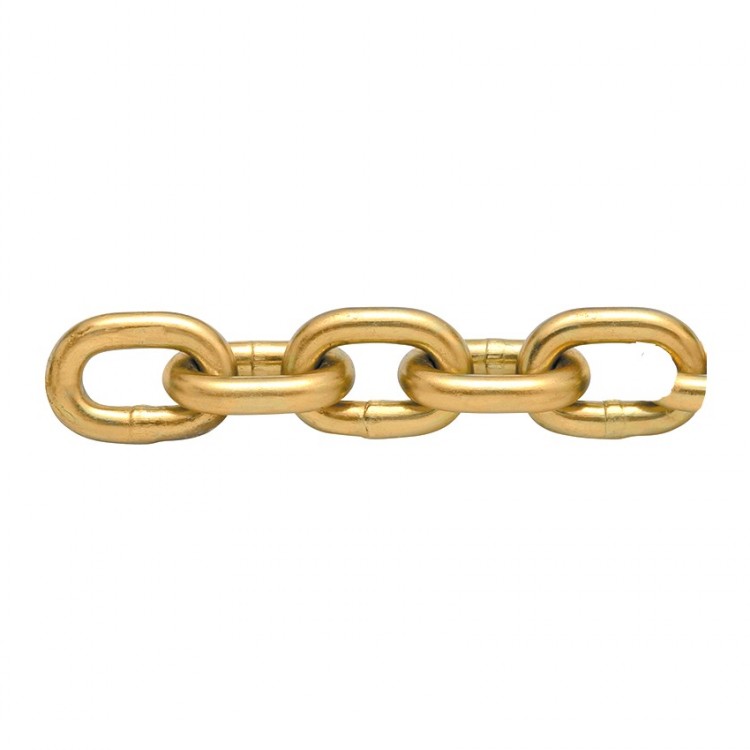

G 70 SHORT LINK CHAIN TRANSPORT CHAIN ASTM Nominal Size Material Diameter Pitch Internal Width Working Load Limit(Max.) Proof Test (Min.) Min. Breaking Force Weight D L b in mm mm in mm in mm lbs lbs lbs lbs/100ft 1/4″ 0.276 7 0.98 25 0.472 12 3,150 6,300 12,600 70 5/16″ 0.343 8.7 1.063 27 0.535 13.6 4,700 9,400 18,800 113 3/8″ 0.406 10.3 1.181 30 0.571 14.5 6,600 13,200 26,400 149 5/16″ 0.469 11.9 1.417 36 0.614 15.6 8,750 17,500 35,000 211 1/2” 0.531 13.5 1.535 39 0.748 19 11,300 22,600 45,200 252 5/8” 0.63 16 1.89 48 0.925 23.5 15,800 31,600 63,200 375 3/4” 0.787 20 2.362 60 1.102 28 24,700 49,400 98,800 581 TRANSPORT CHAIN ASTM STANDARD GRADE 70 SHORT LINK CHAIN Meets the latest revision of ASTM A413 specifications Designed for use in cargo securement, towing and logging. Quenched and tempered, proof tested Design factor 4 : 1 Yellow chromated zinc plated finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:EN818-2 GRADE 80 SHORT LINK CHAIN,GRADE 80 ALLOY CHAIN NACM2010
