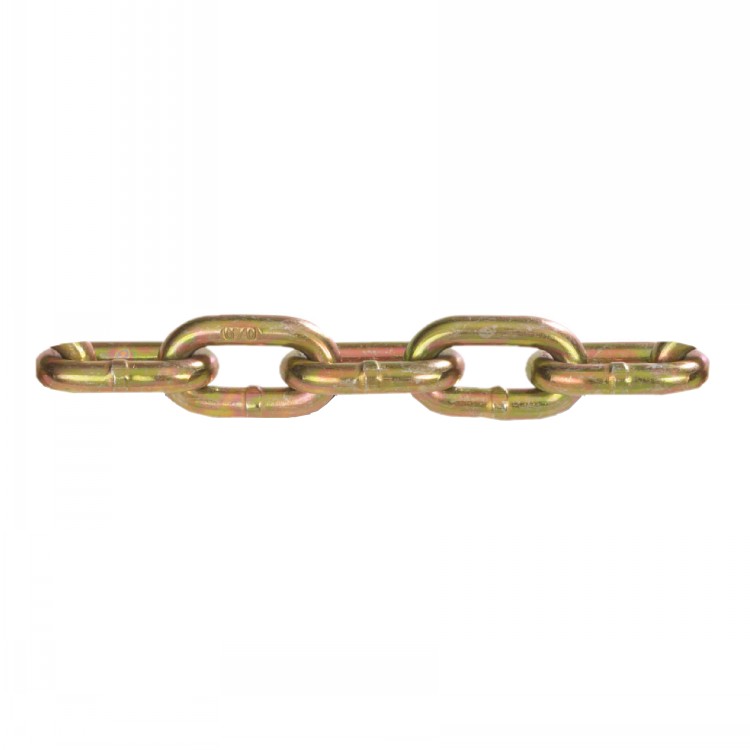

GRADE 70 TRANSPORT CHAIN NACM2010

GRADE 70 TRANSPORT CHAIN NACM2010 Nominal Chain Size Material Diameter Working Load Limit(Max.) Proof Test (Min.) Min. Breaking Force Inside Length (Max.) Inside Width (Min.) in mm in mm lbs kg lbs kN lbs kN in mm in mm 1/4 7 0.281 7 3,150 1,430 6,300 28 12,600 56 1.24 31.5 0.38 9.8 5/16 8.7 0.343 8.7 4,700 2,130 9,400 41.8 18,800 83.6 1.29 32.8 0.44 11.2 3/8 10 0.406 10.3 6,600 2,990 13,200 58.7 26,400 117.4 1.38 35 0.55 14 7/16 11.9 0.468 11.9 8,750 3,970 17,500 77.8 35,000 155.4 1.64 41.6 0.65 16.6 1/2 13 0.531 13.5 11,300 5,130 22,600 100.4 45,200 200.8 1.79 45.5 0.72 18.2 5/8 16 0.63 16 15,800 7,170 31,600 140.4 63,200 280.8 2.2 56 0.79 20 3/7 20 0.787 20 24,700 11,200 49,400 219.6 98,800 439.2 2.76 70 0.98 25 TRANSPORT CHAIN NACM2010 GRADE 70 Designed for use in cargo securement, towing and logging. Meets the latest revision of NACM specifications and D.O.T. regulations Quenched and tempered, proof tested Design factor 4 : 1 Yellow chromated zinc plated finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !                     NOT FOR OVERHEAD LIFTING Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:EN818-2 GRADE 80 SHORT LINK CHAIN,GRADE 80 ALLOY CHAIN NACM2010
