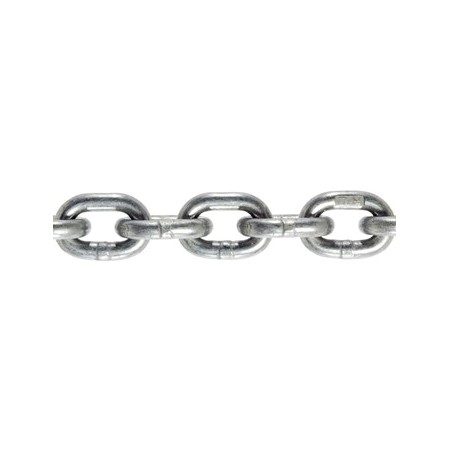

DIN766 SHORT LINK CHAIN GRADE 3

DIN766 SHORT LINK CHAIN GRADE 3 Chain Size Pitch Width Length per 11 Links Working Load Test Force Min. Breaking Force D tolerance L tolerance Min. b Max. B 11 L tolerance mm mm mm mm mm kg kN kN 4 ±0.2 16 0.3 -0.2 4.8 13.6 176 0.8 -0.4 200 5 8 5 ±0.2 18.5 0.4 -0.2 6 17 204 0.9 -0.5 320 8 12.5 6 ±0.2 18.5 0.4 -0.2 7.2 20.4 204 0.9 -0.5 400 10 16 7 ±0.3 22 0.4 -0.2 8.4 23.8 242 1.1 -0.5 630 16 25 8 ±0.3 24 0.4 -0.2 9.6 27.2 264 1.2 -0.6 800 20 32 9 ±0.4 27 0.5 -0.3 10.8 30.6 297 1.3 -0.7 1,000 25 40 10 ±0.4 28 0.5 -0.3 12 36 308 1.4 -0.7 1,250 32 50 11 ±0.4 31 0.5 -0.3 13.2 40 341 1.5 -0.8 1,600 40 63 13 ±0.5 36 0.6 -0.3 15.6 47 396 1.7 -0.9 2,000 50 80 14 ±0.6 41 0.7 -0.4 16.8 50 451 2 -1 2,500 63 100 16 ±0.6 45 0.8 -0.4 19.2 58 495 2.2 -1.1 3,200 80 125 18 ±0.9 50 0.8 -0.4 21.6 65 550 2.5 -1.2 4,000 100 160 20 ±1.0 56 1 -0.5 24 72 616 2.8 -1.4 5,000 125 200 23 ±1.2 64 1.1 -0.5 27.6 83 704 3.2 -1.6 6,300 160 250 26 ±1.3 73 1.2 -0.6 31.2 94 803 3.6 -1.8 8,000 200 320 28 ±1.4 78 1.3 -0.6 33.6 101 858 3.8 -2 10,000 250 400 30 ±1.5 84 1.4 -0.7 36 108 924 4.2 -2.1 11,200 280 450 32 ±1.6 90 1.5 -0.7 38.4 115 990 4.5 -2.2 12,500 320 500 36 ±1.8 101 1.7 -0.8 43.2 130 1,111 5 -2.5 16,000 400 630 40 ±2.0 112 1.9 -0.8 48 144 1,232 5.6 -2.8 20,000 500 800 42 ±2.1 118 2 -1 50 151 1,298 5.8 -3 22,400 560 900 DIN 766 chain has shorter links that allow the chain to articulate very well and smoothly operate in and out of chain lockers and across the chain gypsies. Made from high tensile strength carbon steel, Trident Marine Chains DIN 766 Grade 40 anchor windlass chain is a short pitch type chain that makes it more flexible and suitable for working with anchor windlass gypsies. Each link of chain is proof tested and calibrated to assure strength and fit with the windlass gypsy. WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! NOT FOR OVERHEAD LIFTING Kailipu Professional for Wire Rope and Chain Fittings For any more help, e-mail our specialists at [email protected] for assistance. Similar items: GRADE 43 HIGH TEST CHAIN NACM2010、DIN5685A/C SHORT LINK / LONG LINK CHAIN
