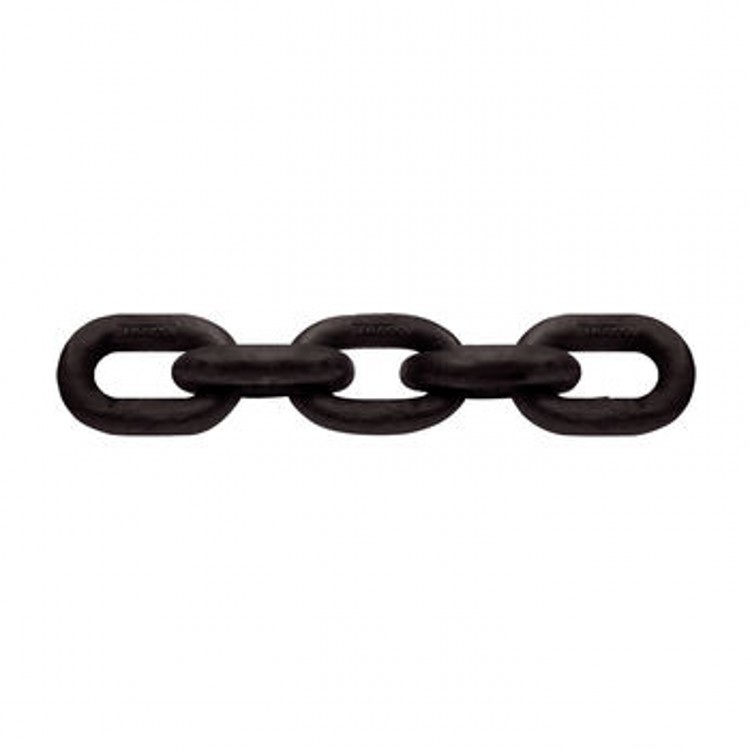

GRADE 80 ALLOY CHAIN NACM2010

NACM2010 GRADE 80 ALLOY CHAIN Nominal Chain Size Material Diameter Working Load Limit(Max.) Proof Test (Min.) Min. Breaking Force Inside Length (Max.) Inside Width Range in mm in mm lbs kg lbs kN lbs kN in mm in mm 7/32 5.5 0.217 5.5 2,100 970 4,200 19 8,400 38 0.69 17.6 0.281-0.325 7.14-8.25 9/32 7 0.276 7 3,500 1,570 7,000 30.8 14,000 61.6 0.9 22.9 0.375-0.430 9.53-10.92 5/16 8 0.315 8 4,500 2,000 9,000 40.3 18,000 80.6 1.04 26.4 0.430-0.500 10.92-12.70 3/8 10 0.394 10 7,100 3,200 14,200 63 28,400 126 1.26 32 0.512-0.600 13.00-15.20 1/2 13 0.512 13 12,000 5,400 24,000 107 48,000 214 1.64 41.6 0.688-0.768 17.48-19.50 5/8 16 0.63 16 18,100 8,200 36,200 161 72,400 322 2.02 51.2 0.812-0.945 20.63-24.00 3/4 20 0.787 20 28,300 12,800 56,600 252 113,200 504 2.52 64 0.984-1.180 25.00-30.00 7/8 22 0.866 22 34,200 15,500 68,400 305 136,800 610 2.77 70.4 1.080-1.300 27.50-33.00 1 26 1.02 26 47,700 21,600 95,400 425 190,800 850 3.28 83.2 1.280-1.540 32.50-39.00 36895 32 1.26 32 72,300 32,800 144,600 644 289,200 1288 4.03 102.4 1.580-1.890 40.00-48.00 NACM2010 GRADE 80 ALLOY CHAIN Specifically recommended for overhead lifting Meet the latest guidelines of the National Association of Chain Manufacturers (NACM) Produced from the highest quality alloy steel Quenched and tempered, proof tested In accordance with 4-to-1 design factor required by NACM specifications Black electrophoresis finish WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS ! Kailipu Professional for Rigging and Lifting For any more help, e-mail our specialists at [email protected] for assistance. Similar items:G80 Eurpean Type Eye Self-locking Safety Hook,G80 Swivel Self-locking Safety Hook European Type
