18-8 Stainless Steel Hex Head Screw

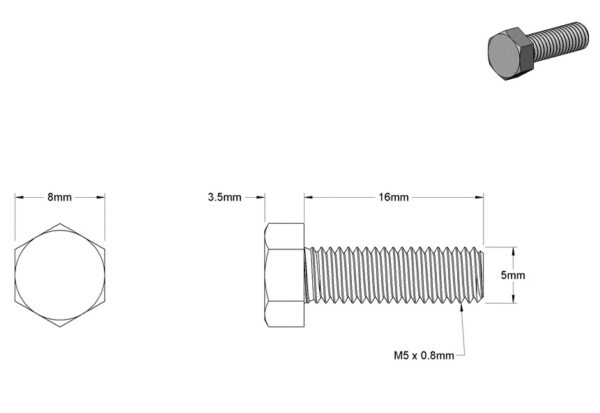

Description Head Type Hex Drive Style External Hex System of Measurement Metric Thread Direction Right Hand Thread Size M5 Thread Pitch 0.8 mm Thread Type Metric Thread Fit Class 6g Length 16mm Threading Fully Threaded Thread Spacing Coarse Head Width 8mm Height 3.5mm Material 18-8 Stainless Steel Tensile Strength 100,000 psi Hardness Not Rated Specifications Met ISO 4017, DIN 933 RoHS RoHS 3 (2015/863/EU) compliant with exemptions 6(a)-I, 6(b)-II, and 6(c) – Lead as an alloying element in steel and aluminum and in copper alloy REACH REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant DFARS Specialty Metals Compliant (252.225-7009) Country of Origin United States USMCA Qualifying No Schedule B 731815.9000 ECCN EAR99 Made from 18-8 stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. Metric screws are also known as A2 stainless steel screws. Match the thread spacing of mating components. Coarse threads are the industry standard; choose these screws if you don’t know the pitch or threads per inch. Screws that meet ASME, or ISO (formerly DIN), or DIN specifications comply with these dimensional standards.
